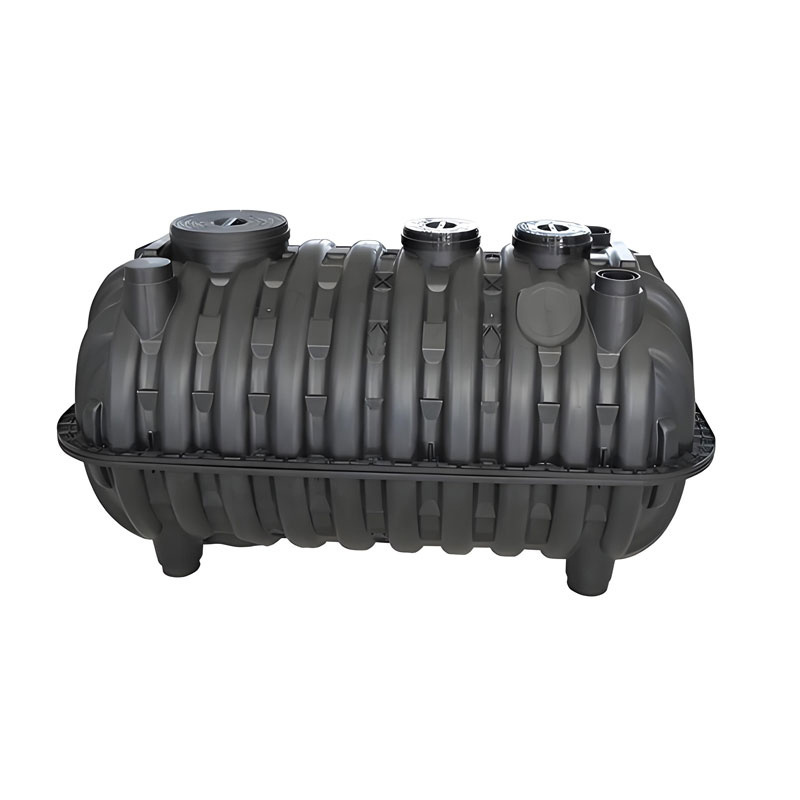

product name Durable Seamless PE Plastic Septic & Aquaculture Tank
Our three-chamber septic tank is manufactured via one-piece rotational molding with premium HDPE raw material, no splicing or welding seams to eliminate leakage risk.
The independent three-cell layout grades sewage step by step, separating sludge and wastewater effectively to meet domestic sewage purification standards, widely used for rural household underground sewage disposal.
HDPE material brings excellent acid & alkali resistance, anti-aging and high compression performance, which allows direct underground burial without collapse, with a service lifespan up to 50 years. Various volume specifications can be customized per clients' project demands for your rotomolded septic tank projects.
product parameters
| Model No. | Dimension (mm) | Thickness(mm) | Capacity | Number of users | Material | ||
| HY-0.6 | 1575*835*780 | 3 | 0.6m3 | 2~3 | PP+PE | ||
| HY-0.8 | 1560*980*908 | 3 | 0.8m3 | 3~4 | PP+PE | ||
| HY-1.0 | 1720*990*910 | 3/4/5/7 | 1.0m3 | 4~6 | PP+PE | ||
| HY-1.5 | 2200*1087*1100 | 4/5/7 | 1.5m3 | 8~10 | PP+PE | ||
| HY-2.0 | 2340*1235*1165 | 5/7 | 2.0m3 | 10~13 | PP+PE | ||
| HY-2.5 | 2725*1260*1180 | 7 | 2.5m3 | 13~15 | PP+PE |
product introduction
This three-chamber septic tank is made by one-piece rotational molding technology using high-density polyethylene. There are no joints or welds on the tank body, so underground leakage trouble can be avoided completely.
The three-cell layered design separates sludge and wastewater step by step to meet rural household sewage treatment needs. Thanks to HDPE material, our rotomolded septic tank has great compression strength and acid-alkali resistance, with a long working lifespan up to 50 years.
We support customized tank volumes and provide reliable OEM & ODM service. ISO9001 certification ensures consistent quality, and we arrange fast delivery for your projects.

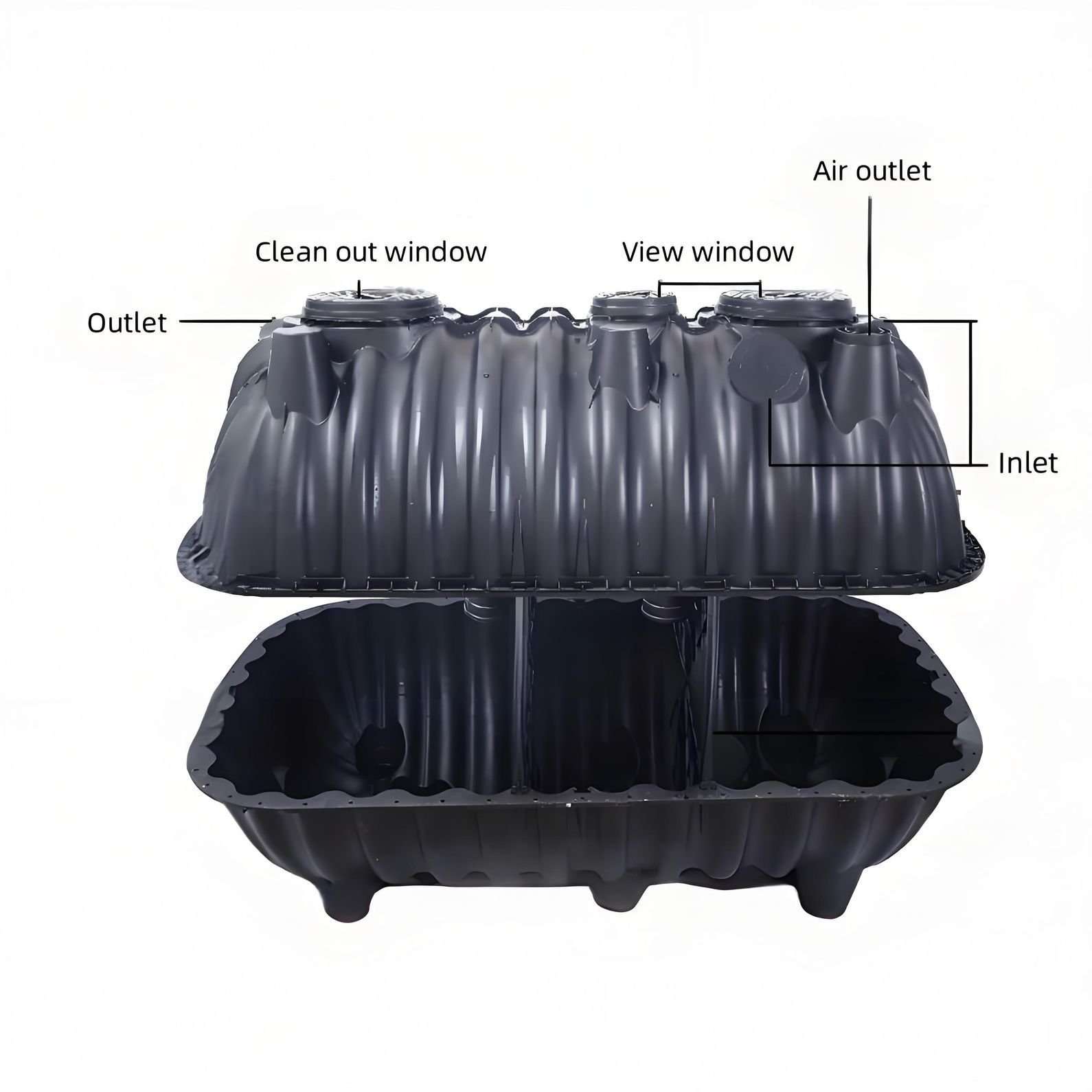

product structure
Product Structure of Three-Chamber PE Septic Tank
Modular Assembly Sewage Treatment Tank for Underground Domestic Wastewater Disposal
This three-chamber PE septic tank adopts a split upper and lower shell design. It comes with an inlet for sewage input, an outlet for treated water discharge, plus an air outlet for gas ventilation.
Equipped with view window and clean out window, it allows easy inspection and regular sludge cleaning. The built-in partition divides the tank into three independent chambers to realize staged sewage purification.

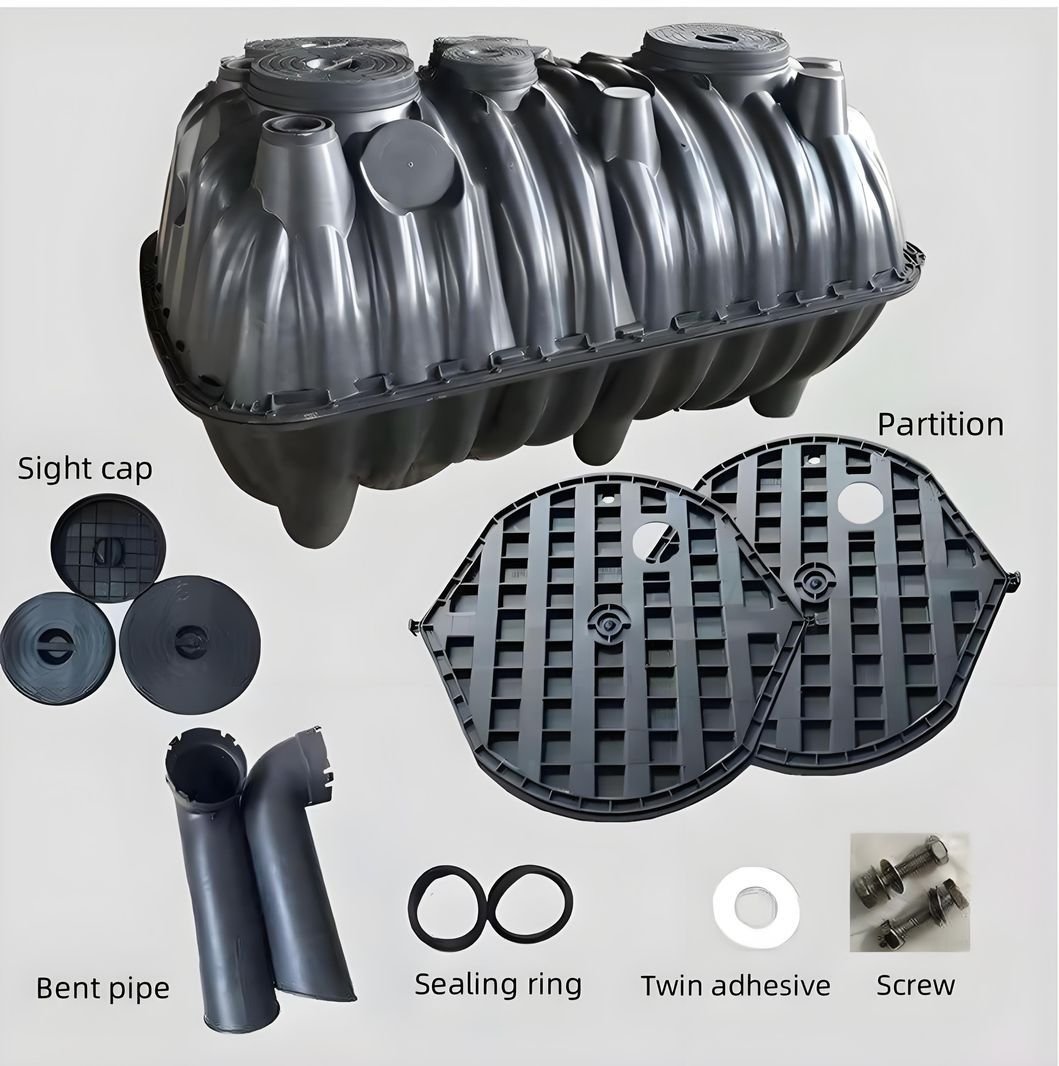

Complete Accessories of Three-Chamber PE Septic Tank
Our three-chamber PE septic tank is supplied with a full set of matching accessories, including partition baffles, sight caps, bent pipes, sealing rings, twin adhesive tapes and fixing screws.
All supporting parts are made of durable PE material. The complete kit enables quick on-site assembly and reliable sealing, to ensure stable sewage treatment performance.

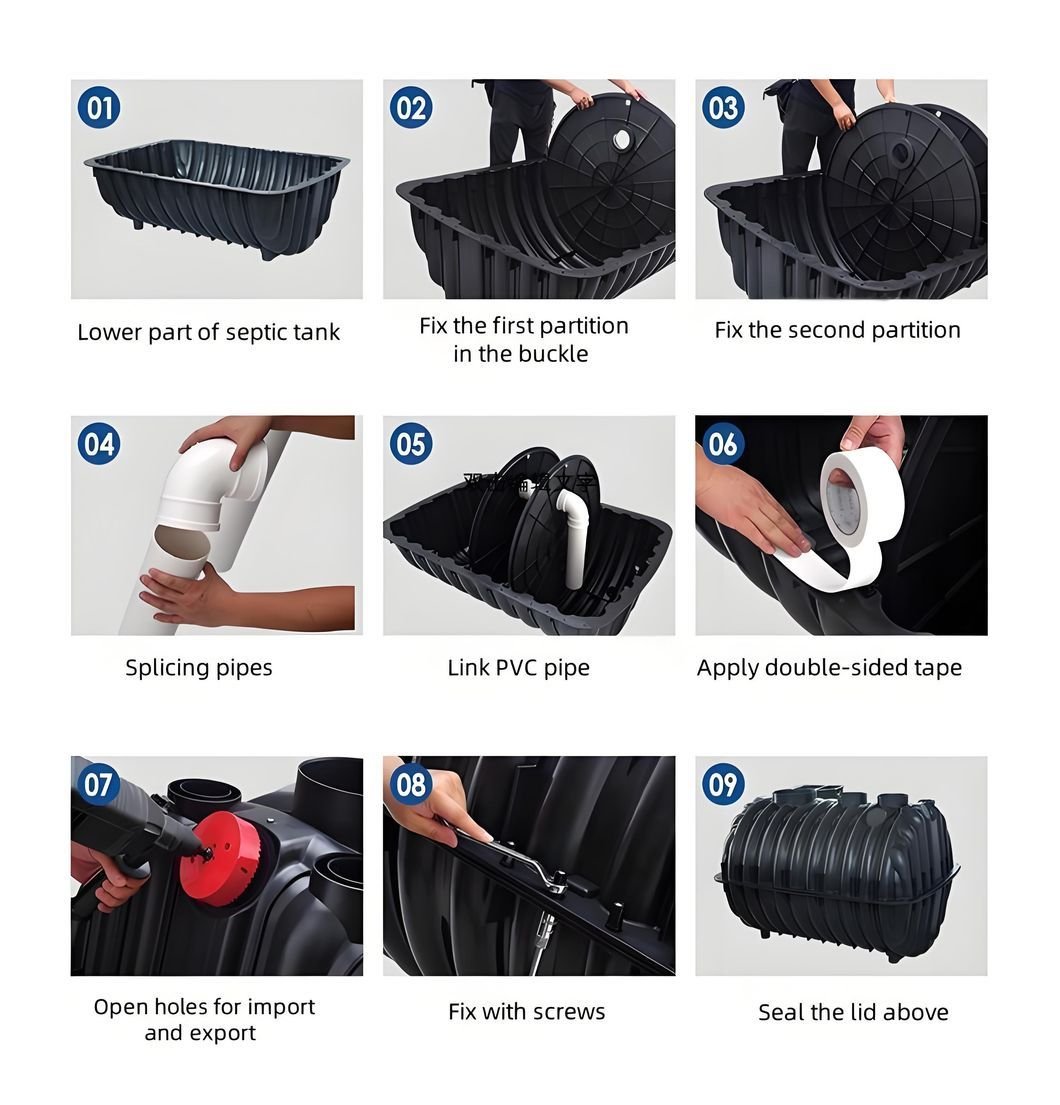

product Installation
Our three-chamber PE septic tank features simple on-site assembly. Follow the step-by-step installation guide to complete the setup quickly.
1. Prepare the septic tank lower shell as the base container.
2. Install and lock the first partition plate inside the tank.
3. Fix the second partition to form 3 independent sewage chambers.
4. Cut and prepare PVC connecting pipes for water flow.
5. Attach PVC pipes to partition openings for sewage transfer.
6. Apply sealing double-sided tape on joint positions for leak prevention.
7. Drill inlet and outlet holes on the tank body for pipeline connection.
8. Fasten all components tightly with screws.
9. Place and seal the top tank lid, finish assembly for underground burial.

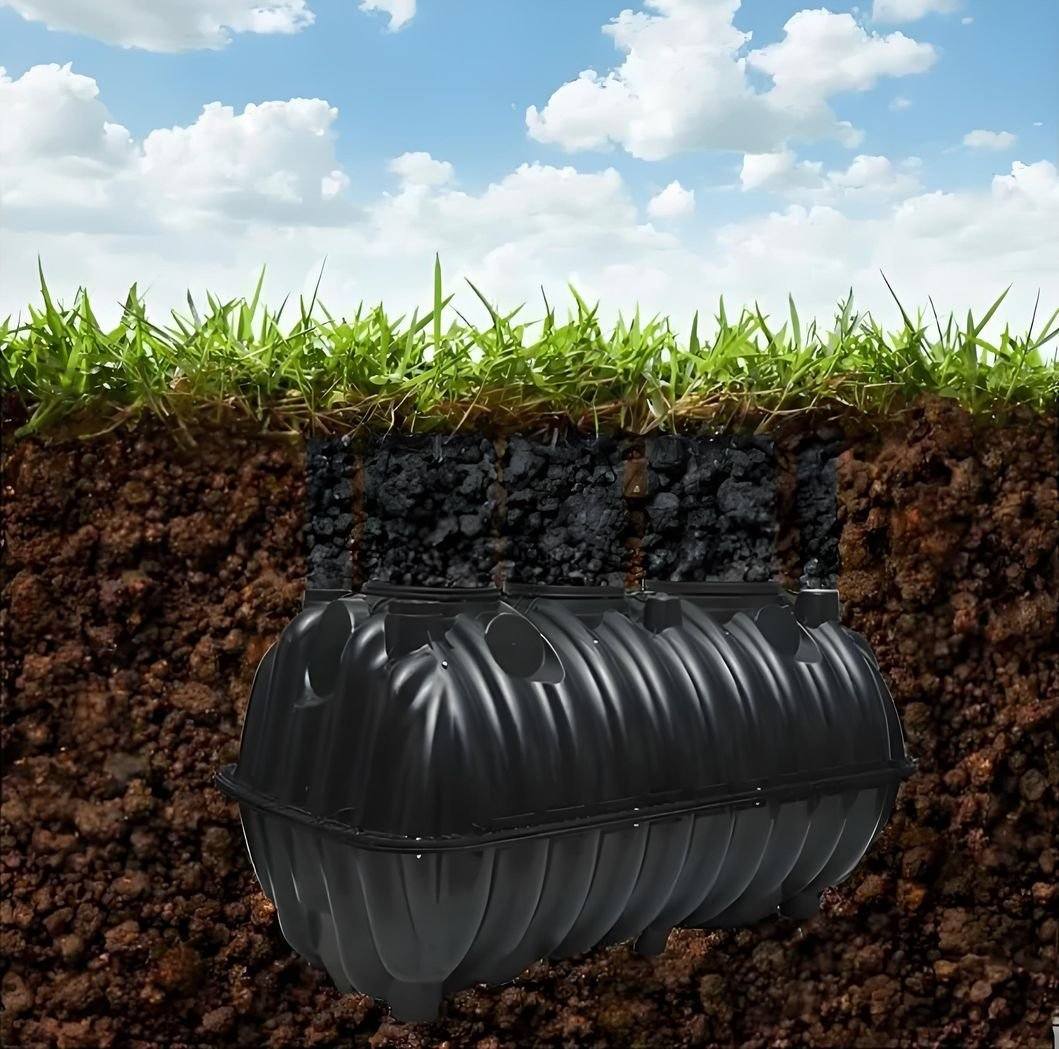

application Scenarios
Our Mellow rotomolded three-chamber HDPE septic tank adopts underground buried installation. It is widely used for domestic sewage treatment in rural residences, private villas, countryside homestays, construction camps and scattered communities. It separates and ferments sewage and sludge, helping customers meet local environmental protection discharge standards.
FRQ
It adopts premium PP+PE composite material by rotational molding. It features anti-aging, acid & alkali resistance and high compression strength, service life up to 50 years underground.
Yes. It is one-piece rotomolded without splicing or welding seams, effectively eliminating leakage risk.
Standard models range from 0.6m³ to 2.5m³, covering 2–15 users. Customized sizes and capacities are available according to your project requirements.
It is buried hidden type installation, modular assembly. Full set of matching accessories are supplied together for easy on-site construction.
